Product Description

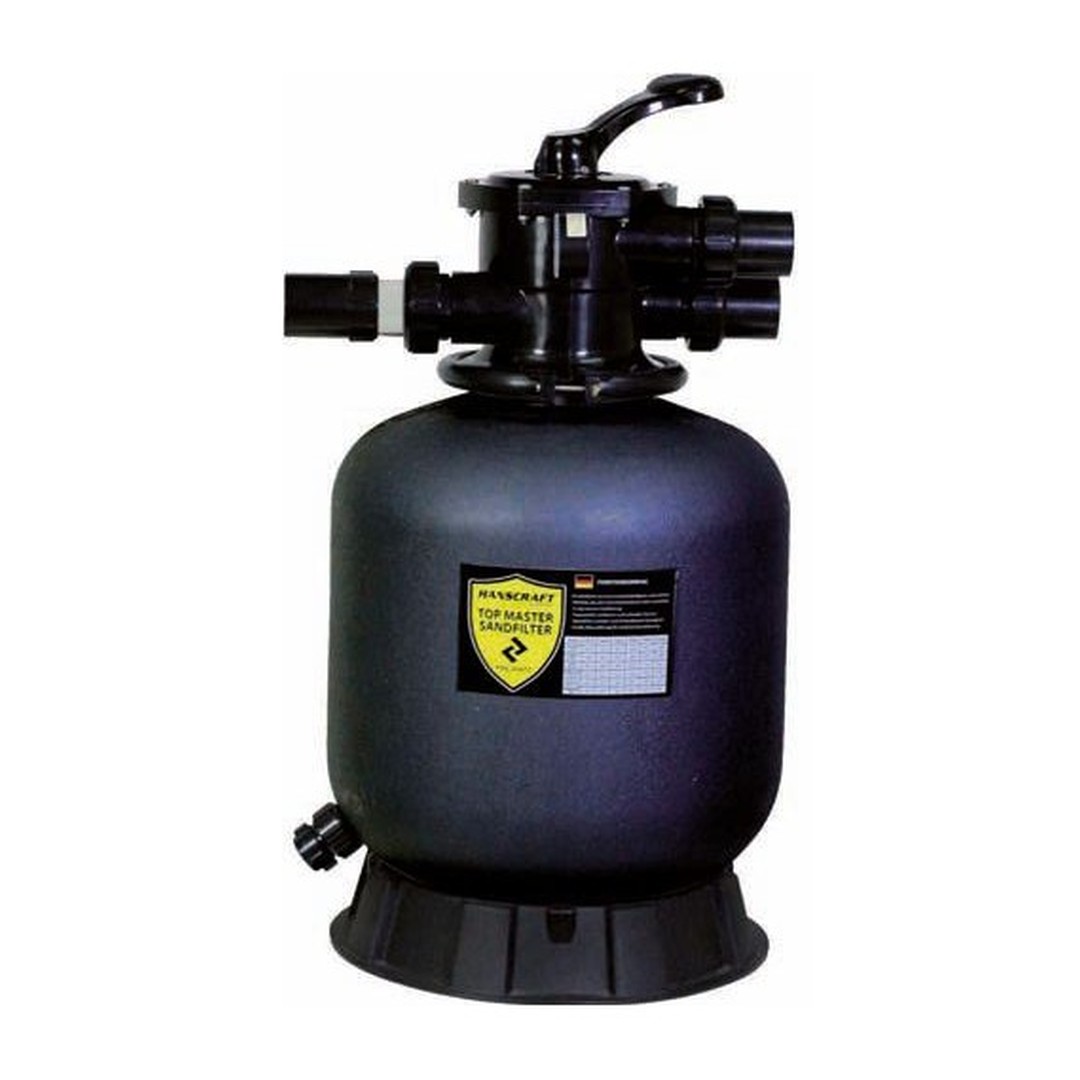

Sand filtration TOP MASTER 700
Sand filters of the TOP MASTER™ series are made of a container made of polymer hardened HDPE material, which guarantees an extremely long service life. The upper diffuser ensures an even distribution of water over the upper part and ensures a perfect filtering function. All filters of this series are equipped with a 6-way valve and a control manometer.
Sand filtration serves to capture impurities contained in the water. The pool water passes through a sand filter cartridge in which mechanical impurities are captured and clean water is returned to the pool.
The filter station should filter 2x the volume of water in the pool in 8 hours. For heavily loaded pools or at high air temperatures, it is recommended to filter the volume of water every 3 hours.
The maintenance requirements of sand filtration are minimal: the sand filling is washed as standard once a week (depending on the load of the pool), the replacement of the sand filling is sufficient once every 2 to 3 years. Sand filtration is very efficient and allows the connection of other accessories such as solar heating, heat pump and pool vacuum cleaners.
Technical information:
• choice of base (Basic, Combo (with base also for filter pump)
• equipped with a TOP 6-way valve
• equipped with a pressure gauge
• maximum operating pressure 28 psi/2.0 bar/ 2.0 kg/cm²
• maximum temperature 40 °C (104 °F)
• recommended grain size of the medium: 0.5–0.8 mm
• equipped with ABS materials
• the package includes all fittings and a waste sight glass
• made of UV resistant material
Usage:
• For sweet and salty water treatment
• For indoor and outdoor pools
• Suitable for up to 90 m3 of water
Package Contents:
• Polypropylene container
• 6-way TOP valve
Technical parameters
• Container material: Hardened polyethylene
• Container diameter: 700 mm
• Container height: 1020 mm
• Connection: 50 mm
• Max. working pressure: 2 bar
• Valve: 6-way top
• Amount of filling: 210 kg
• Recommended grain size: 0.5 - 0.8 mm
• Flow rate: 19.6 m3/hour.
• Weight: 22.8 kg
Specifications
Weight: 22.8kg
Dimensions: 15.8 x 13.2 x 10.5cm
